Product Details
- Size: 3.15
- Place of Origin: China
- Brand Name: XB
- Model Number: M30.2A
- Weight: 750.000 kg

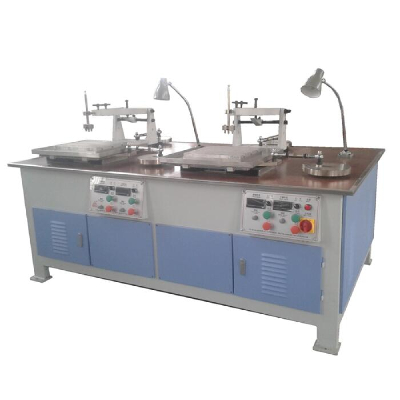

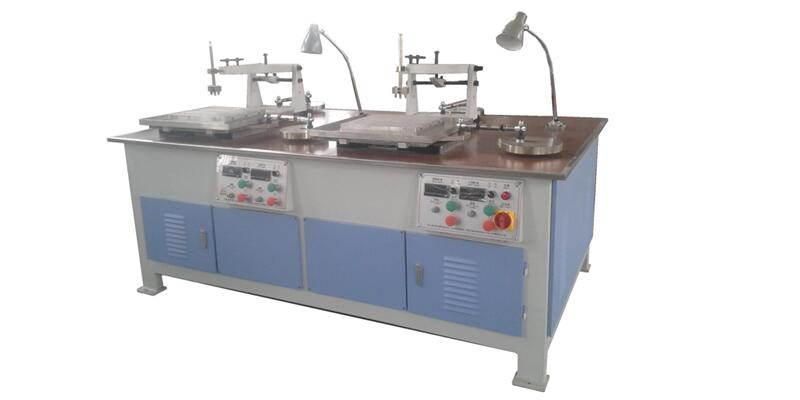

Dual-axle Cylinder Grinding Polisher is used to polishing cylinder surface of optic glass, quartz and crystal and so on and so forth.
ZM30.2A Dual-axle Cylinder Grinding Polisher , there are two guide which improve the efficiency of the machine that make it possible for large quantity of processing parts. There are four T type troughs in the table that keep the processing article stable.
- Size: 3.15
- Place of Origin: China
- Brand Name: XB
- Model Number: M30.2A
- Weight: 750.000 kg
| Main technical specification | ||||
| Spindle Number | 2 | Worktable size | 350 x 320 mm | |
| T-type slot size | 20 x 10 x 13 mm | Tank size | 500 x 500 x 30 mm | |
| Worktable stroke | 180mm | Worktable reciprocating frequency | 0.1 ~ 100 times/min | |
| Total power | 3.2KW / 380V | High from swing frame center to table-board | 115mm or 185mm | |
| Size (mm) | 2200 x 1300 x 1100 | Weight (Kg) | 750 | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
