Product Details
- Size: 1.8
- Place of Origin: China
- Brand Name: XB
- Model Number: XZ20.2A
- Weight: 700.000 kg

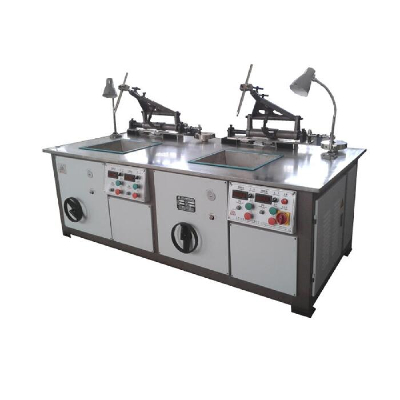

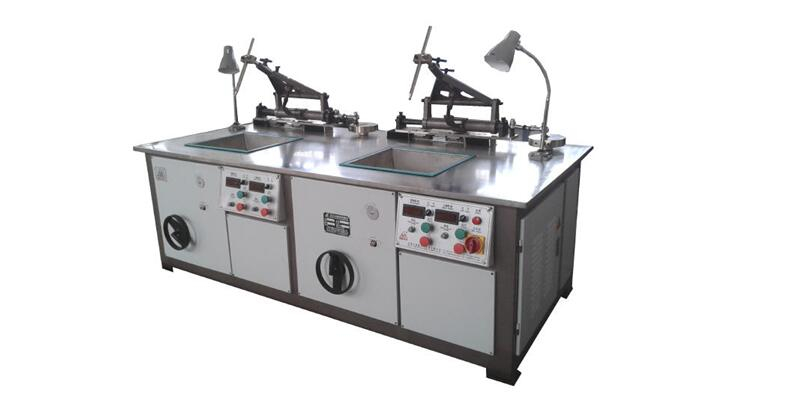

Mainly used for grinding and polishing of large-sized optical plan mirror and spherical mirror as well as high precision flat surface and Concavo convex spherical surface mode. The main axle can lean right and left to as large as 45 degrees to meet the requirement of process large-sized spherical surface.
- Size: 1.8
- Place of Origin: China
- Brand Name: XB
- Model Number: XZ20.2A
- Weight: 700.000 kg
| Main technical specification | ||||
| Mirror disk diameter | Φ 200 mm | Tank diameter | 450×400×200 mm | |
| Main axle rotating speed | 1～100 RPM(according to user's requirement) | Amount of main axis | 2 axis, Thread M27X3 or (conicity 1:8) | |
| Swing shelf move times | 1 - 100 times/min | Swing amplitude | 0 - 180mm | |
| Axial and radial run out | ≤0.025mm | Total power | 2.3KW / 380V | |
| Main oblique degree | 45 degrees (from right and left) | Curvature rad | R≥30mm | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
