- Size: 1.66
- Place of Origin: China
- Brand Name: XB
- Model Number: SXM350A
- Weight: 1400.000 kg

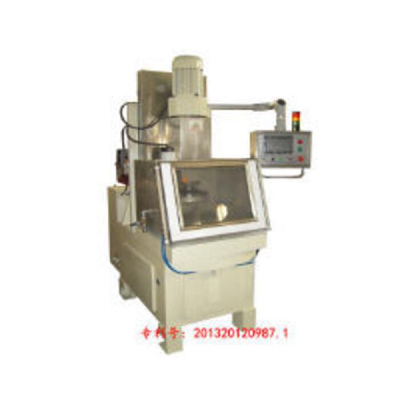

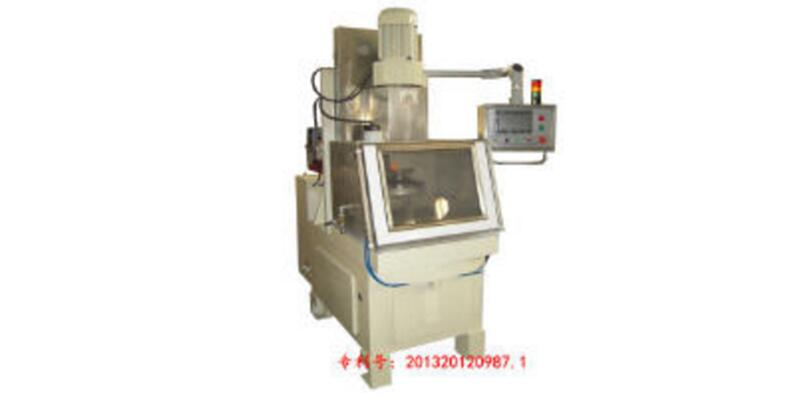

When processing the rough, high-speed rotating wheel uniform declines in isokinetic and rub against with the low-speed rotating work piece, thus reducing the processing volume. When processing size is in place, the milling&grinding machine begins to mill knife. At this time the high-speed rotation wheel stops declining, remain at the specified height, milling and grinding in a circular movement. The longer of knife milling, the brighter the work piece. The table can be adjusted.
The grinding head motor with large power, with the qualities of strong cutting capability, stable operation, stable processing quality, work piece can be polished directly after proper processing. Feeding mode by a stepping motor, ball screw and stepless speed regulation.
This machine adopted PLC touch screen controller and digital processing, programming control and reliable operation, can make sure the work piece size consistency. Milling efficiency increased automation. A button can realize all the processing program, one worker can operate a plurality.
Its electronic grinding head, grinding disk, grinding fluid, feeding and rapid response all these can work together at the same time or work separately, thus making it very convenient to operate. This machine has the function of limiting, even if the occasional mistake operation will not affect the equipment. Controlling transformer can isolate the control power supply and power supply. The control power supply's voltage is 24v safe voltage, no harm to operators' personal safety. The reserved 485 control interface can link more than one computers thus meet the scale of mass production.
This equipment is of high precision, strong cutting force, stable surface, high intelligent and one-key operation. Mainly applied to: optic glass, ceramics, quartz crystal, semiconductor, electronic, metal and other materials' plane rough grinding as well as fine grinding.
- Size: 1.66
- Place of Origin: China
- Brand Name: XB
- Model Number: SXM350A
- Weight: 1400.000 kg
Main technical specification | ||||
Worktable dia. | Φ 350mm | Processing components height | ≤200mm | |
Diamond wheel | Φ 254 x 188 x 47 mm | Speed of grinding wheel | 1500~ 3000 r/min (Stepless speed) | |
Worktable speed | 0 ~ 8r/min (Stepless speed) | Feed speed | 0.001 - 0.2mm | |
Repositioning precision | 0.005mm | Min. display resolution | 0.001mm | |
Size (mm) | 1100 x 700 x 2160 | Weight (Kg) | 1400 | |
We also can design and manufacture the machine according to the customer's special requirements |
