- Place of Origin: JIANGSU
- Brand Name: XB
- Model Number: SLP22B/25B

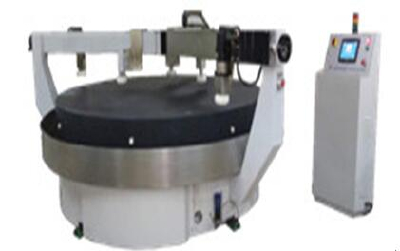

This machine is a precision polishing equipment for high precision optical, electronic, ceramic, silicon, mechanical parts and other plane brittle components.
The machine PLC digital program control operation mode can independently control various operation procedures, and has the functions of stepless speed regulation, timing control, counting control, sequential control, remote fault alarm and so on. The operation of the equipment is more simple and fully satisfied with the requirements of high precision optical processing.
- Place of Origin: JIANGSU
- Brand Name: XB
- Model Number: SLP22B/25B
Main technical specification | |||||
SLP22B | SLP25B | SLP22B | SLP25B | ||
Millstone Size(granite) | Φ2200x300（mm） | Φ2500x300（mm） | Tank diameter | Φ2500mm | Φ2700mm |
Jumping range of the millstone | ≤0.10mm | ≤0.10mm | Jumping range of single point | ≤0.01mm | ≤0.01mm |
Processing Scope | ≤Φ700 | ≤Φ750 | Regulation millstone specification | Φ1150×110(mm) | Φ1310×110(mm) |
Millstone rotating speed | 0～4.26r/min (Servo stepless) | 0～3.5 r/min (Servo stepless) | Driving wheel rotate speed | 0～300r/min (Servo stepless) | 0～300r/min (Servo stepless) |
PLC Operation Panel | AH102L(10”) | AH102L(10”) | Total power | 10kw/380V | 10kw/380V |
Weight | About 8000 kg | About 9000 kg | Size | 2850×3200×1400（mm） | 3150×3200×1400（mm） |
