Product Details
- Size: 4.4
- Place of Origin: China
- Brand Name: XB
- Model Number: QJP25.4B
- Weight: 1400.000 kg

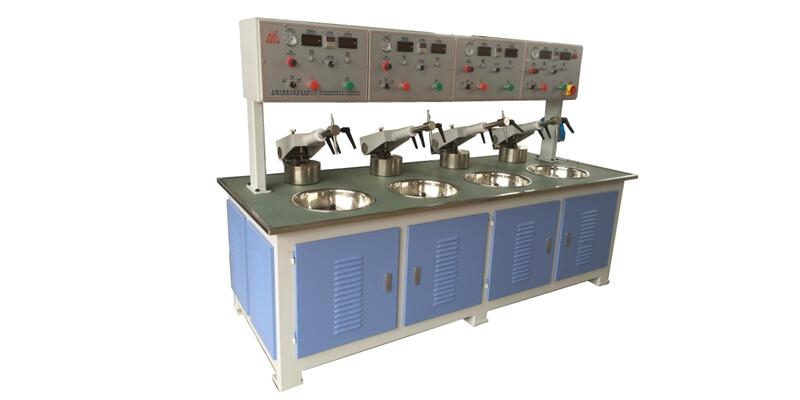

JP25.4B Four-axis Air Pressure Precision Grinding Polisher
(Ultra-smooth Polishing Equipment)
It is mainly used for precision polishing of the flat and sphere surface of optical glass, quartz, crystal, and electronic components etc. This machine is a high-precision, high-efficiency optical cold processing equipment, flat swing movement. The main axis, swing axis, rotating speed, pressure and time can be adjusted individually according to the need of the parts processing. It is convenient to operate and the quality of the machining parts is stable.
- Size: 4.4
- Place of Origin: China
- Brand Name: XB
- Model Number: QJP25.4B
- Weight: 1400.000 kg
| Main technical specification | ||||
| Main axis space | 540 mm | Processing range | Φ≤250mm | |
| Speed of main axle | 0～120 RPM(according to user's requirement) | Amount of main axis | 4 axis, Thread M27X3 | |
| Swing times of swing shelf | 0～75RPM(according to user's requirement) | Total power | 4.4KW / 380V | |
| Weight | About 1400 kg | Size | 2300×1200×1590 mm | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
