- Place of Origin: JIANGSU
- Brand Name: XB
- Model Number: LP16C

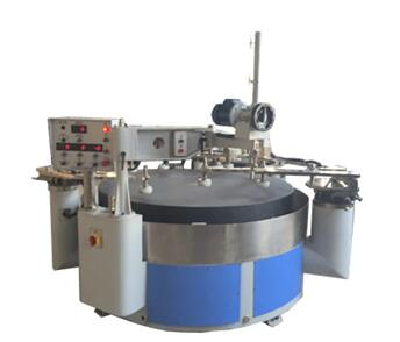

This machine is for single-side precision polishing of high precision optical glass, quartz, crystal, metal and non-metal, high-precision plane components. Between the polishing millstome and the base is adopted the outer gear ring of large precision annular bearing structure. And the driving wheel is rotation mechanism, it is very good for large parts processing to the rotation of work.
The electric hoisting function of regulation millstone to make the machine saving time and labor, and it is more safe and reliable. The machine has the functions of stepless speed regulation, timing control, counting control, sequence control, remote fault alarm and so on.
The operation of the equipment is simple and flexible, and it is fully satisfied with the requirements of high precision optical processing.
- Place of Origin: JIANGSU
- Brand Name: XB
- Model Number: LP16C

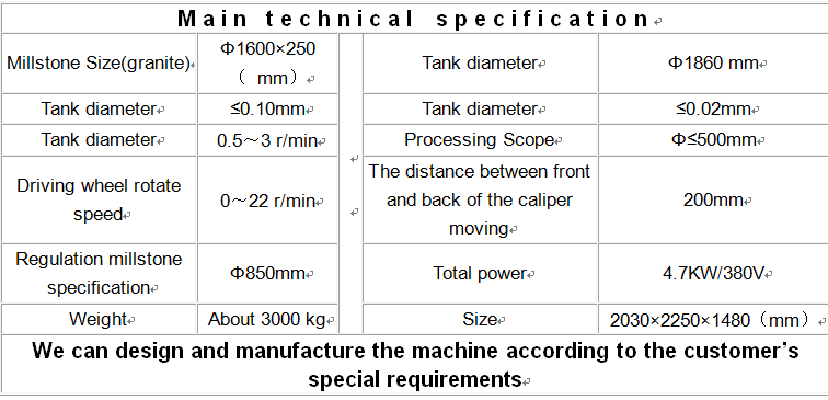

Main technical specification | ||||
Millstone Size(granite) | Φ1600×250（ mm） | Tank diameter | Φ1860 mm | |
Tank diameter | ≤0.10mm | Tank diameter | ≤0.02mm | |
Tank diameter | 0.5～3 r/min | Processing Scope | Φ≤500mm | |
Driving wheel rotate speed | 0～22 r/min | The distance between front and back of the caliper moving | 200mm | |
Regulation millstone specification | Φ850mm | Total power | 4.7KW/380V | |
Weight | About 3000 kg | Size | 2030×2250×1480（mm） | |
We can design and manufacture the machine according to the customer’s special requirements | ||||
