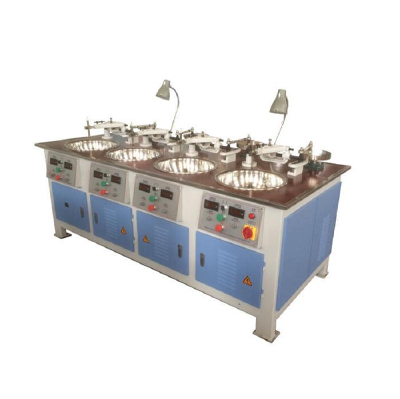

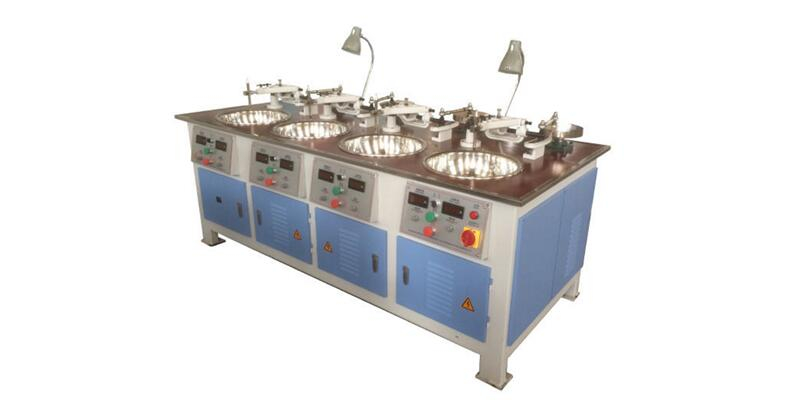

JP15.4B/JP25.4B Four-axle Grinding Polisher

JP15.4B/JP25.4B Four-axle Grinding Polisher

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1.8
  • Place of Origin:  China
  • Brand Name:  XB
  • Model Number:  JP15.4B / JP25.4B
  • Weight: 700.000 kg


Mainly used for grinding and polishing of curved face, spherical face and plane face of fragile materials such as optic glass, quartz glass, crystal materials, electronic components etc. and also used for grinding and polishing of high-precision plane face and concave and convex face models.



  • Size:  1.8
  • Place of Origin:  China
  • Brand Name:  XB
  • Model Number:  JP15.4B / JP25.4B
  • Weight: 700.000 kg
Main technical specification

JP15.4BJP25.4B

JP15.4BJP25.4B
Processing rangeΦ 150 mmΦ 250 mm
Radius of curvatureR10mmR10mm
Tank diameterΦ 300 mmΦ 400 mmMain axis rotating speed50200 RPM50150 RPM
Main axis conicityExternal conicity 1:8External conicity 1:8Swing frame
vibration times
10 - 100 times/min10 -  70 times/min
Swing amplitude0 - 120 mm0 - 150 mmAmount of main axis44
Main axis precision0.02mm0.02mmTotal power1.6KW / 380V3.2KW / 380V
Weight (Kg)650750Size (mm)2000X1000X10002400X1000X1000
We also can design and manufacture the machine according to the customer's special requirements
