Product Details
- Size: 3.4
- Place of Origin: China
- Brand Name: XB
- Model Number: JP08A
- Weight: 1000.000 kg

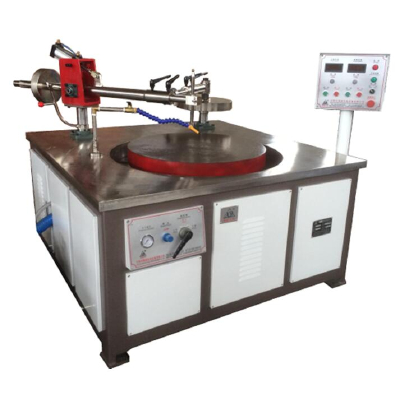

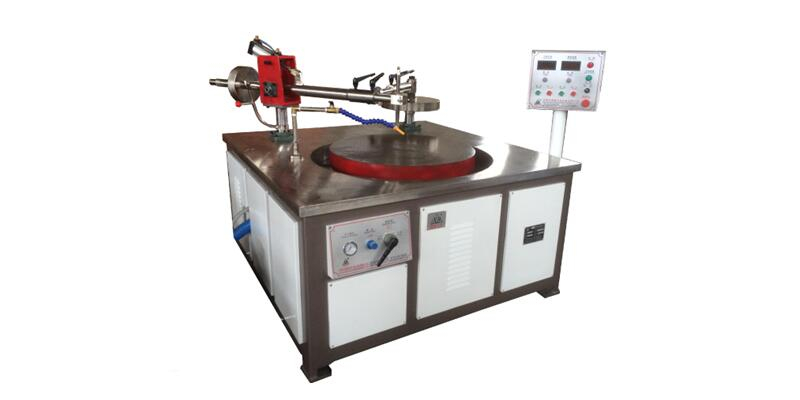

Mainly used for rough grinding, fine grinding and polishing of large size plane lens, convex-concave lens and aspheric lens. The main-axle rolling speed and swing shelf swing times of the Polisher can be adjusted separately as variable frequency based on different proceeded parts, and the pressure of the swing shelf should be controlled by air pressure or be adjusted by using the balancing weight.
- Size: 3.4
- Place of Origin: China
- Brand Name: XB
- Model Number: JP08A
- Weight: 1000.000 kg
| Main technical specification | ||||
| Millstone dia. | Φ800 mm | Tank dia. | Φ1000 mm | |
| Millstone accuracy | ≤0.05mm | Processing range | Φ≤700mm | |
| Main axle precision | Axial and radial run out ≤0.02 | Main swing shelf | Max. adjustable range of swing disc:170mm Movable angle of the swing pole: 20°, -10° Stroke range of the swing pole:110mm; Swing times:0~50 SPM | |
| Swing amplitude | Stroke range of the swing pole:150mm | Total power | 4.4KW / 380V | |
| Weight | About 1000 kg | Size | 1500×1500×1500 mm | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
