Product Details
- Size: 4.25
- Place of Origin: China
- Brand Name: XB
- Model Number: GZM15.4A
- Weight: 1200.000 kg

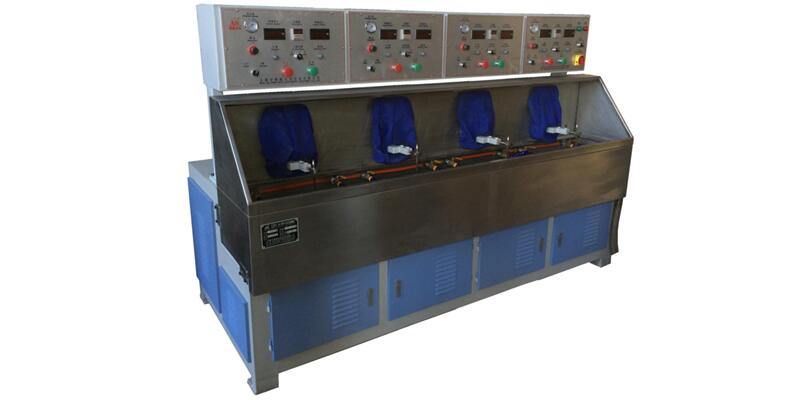

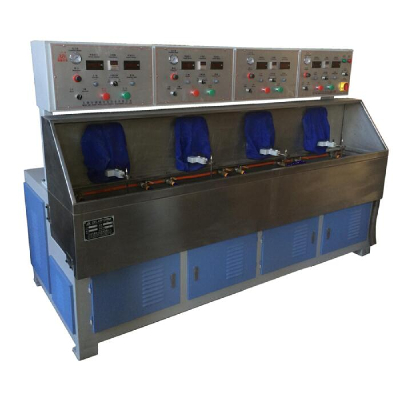

This machine mainly used for cylinder grinding and polishing of all kinds of optical glass, quartz, crystal etc.. It has the following features: automatic cycle of cooling liquid, stainless water tank,Variable frequency system to control main swing and sub-swing separately. Workpiece can puthorizontally and vertically. Stable movement, low noise without vibration. An ideal machine for grinding and polishing in large quantity.
- Size: 4.25
- Place of Origin: China
- Brand Name: XB
- Model Number: GZM15.4A
- Weight: 1200.000 kg
| Main technical specification | ||||
| Number of main swing | 4 | Distance between main swings | 575 mm | |
| workbench travel distance | 20 x 10 x 13 mm | Repeat frequency of workbench | 15 ~ 100 times/min Based on clients' requirement | |
| Swing shelf travel distance | 180mm | Repeat frequency of swing shelf | 15 ~ 100 times/min Based on clients' requirement | |
| Pneumatic pressure | Max 0.99Mpa | Total power | 3.2KW / 380V | |
| Size (mm) | 2440 x 1050 x 1650 | Weight (Kg) | 1200 | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
