Product Details
- Size: 3.65
- Place of Origin: China
- Brand Name: XB
- Model Number: GXZ30.2A
- Weight: 1000.000 kg

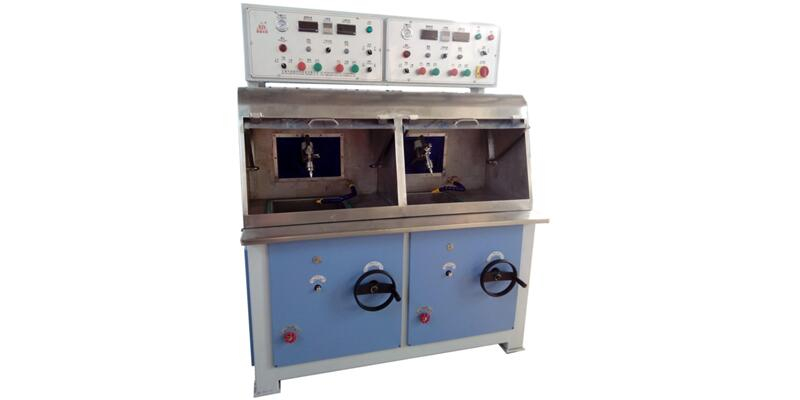

Mainly used for grinding and polishing spherical mirror. Its triangular support is equipped with an electronic-controlled device; the rocker moves linearly back and forth, as a new model of product, the most obvious characteristic is its main axle can incline 30 degrees randomly.
- Size: 3.65
- Place of Origin: China
- Brand Name: XB
- Model Number: GXZ30.2A
- Weight: 1000.000 kg
| Main technical specification | ||||
| Processing range | Φ ≤300 mm | Radius of curvature | R≥5mm | |
| Tank diameter | Φ 560 mm | Main axis rotating speed | 50～150 times/min | |
| Main axis conicity | M27 x 3 (as required) | Swing frame transfer times | 20 - 100 times/min | |
| Swing amplitude | 0 ~ 180 mm | Amount of main axis | 2 | |
| Main axis precision | ≤0.02mm | Total power | 4.8KW / 380V | |
| Spindle tilt angle | 0 ~ 30° | Air pressure | ≥0.5MPa | |
| Weight (Kg) | 1000 | Size (mm) | 2000X1100X1650 | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
