- Size: 4.75
- Place of Origin: China
- Brand Name: XB
- Model Number: GJP35.4A/B
- Weight: 1200.000 kg

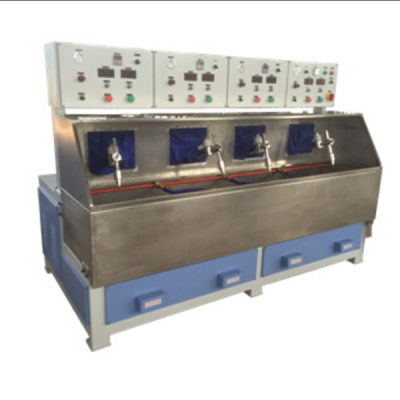

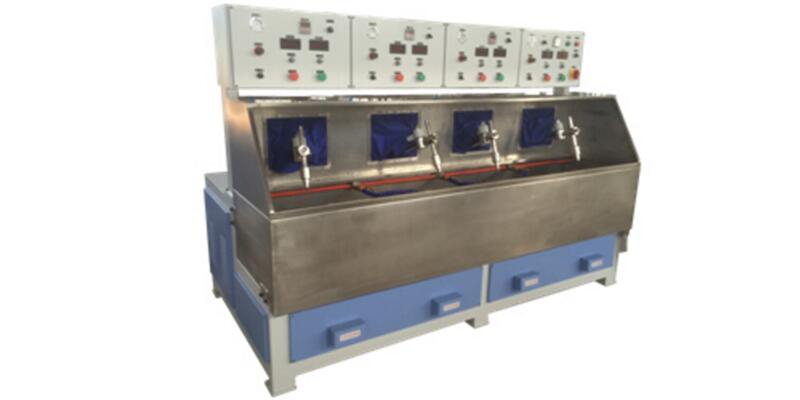

Mainly used for grinding and polishing flat surfaces and spherical surfaces of optical glass, quartz, crystal and electronic components. As a high-precision and high-efficiency optical cooling processing machine, its main axle, sub axle, rotating speed, pressure and time, all these parameters can be controlled or adjusted separately. It has the qualities of energy-saving, low noise, easy to operate, a really ideal grinding and polishing equipment.
This high-speed precision grinding polisher series have two types: type A and type B. both types adopt main axle and axle of rotation move separately or independently. Their difference lies in the main axle's movement:
For type A (such as GJP30.4A, GJP35.4A), planar motion
For type B (such as GJP30.4B, GJP35.4B), elliptical movement
- Size: 4.75
- Place of Origin: China
- Brand Name: XB
- Model Number: GJP35.4A/B
- Weight: 1200.000 kg
| Main technical specification | ||||
| Processing range | Main axis rotating speed | Swing shelf swing times | Distance between main axles | |
| GJP30.4A/B | ≤Φ 300 mm | 0 ~ 350RPM | 0～ 45 times/min | 450mm |
| GJP35.4A/B | ≤Φ 350 mm | 0 ~ 350RPM | 0～ 45 times/min | 550mm |
| Total power | Amount of main axis | Size (mm) | Weight (Kg) | |
| GJP30.4A/B | 4.5 KW / 380V | 4, screw thread M27x3 | 1880*1200*1650 | 1000 |
| GJP35.4A/B | 6 KW / 380V | 4, screw thread M27x3 | 2400*1200*1650 | 12000 |
