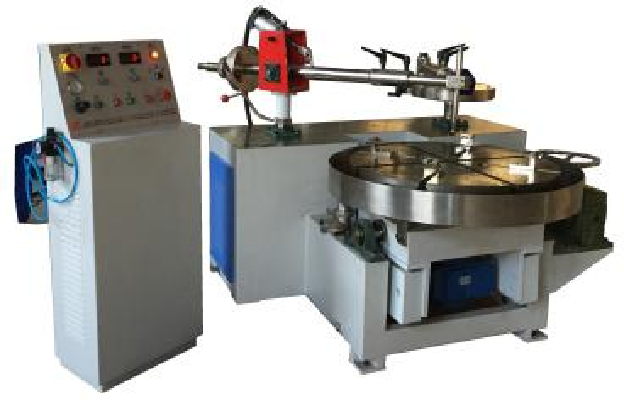

| Productname:FJP08A single-axis turnover grinding polisherProduct Code:114118-275Updated:2016.10.27Production units:wuxi xibin opto-electronic equipment co.,ltdviews:6 |
| Product Details |
This machine mainly used for grinding and polishing of large-diameter optical glass, quartz and crystals, perfect on flat, spherical or aspheric surface. The operating platform can be turned over 90 degrees stably and smoothly by power driven or manual operation, to make the workpiece perfectly meet the level detection requirements. |
Main technical specification | ||||
1.Worktable dia. | F800mm | 2.Processing range | F600*180mm | |
3.Speed of worktable
| 5~30r/min | 4.Swing amplitude | (swing plate)max adjustable range 170mm (awing rod)shrinkage range ��110mm Swing times 0~20times/min | |
5.Eccentric disc dia. | F420mm | 6.Worktable turnover(degree) | 90(manual) | |
7.Operation mode | PLC control, touch screen | 8.Power | 4.5KW/380V | |
9.Size | 1600*1760*1300(mm) | 10.Weight | 1200 kg | |
The machine can be designed and manufactured as require. | ||||
