- Size: 4.75
- Place of Origin: China
- Brand Name: XB
- Model Number: DMYP12B-4
- Weight: 1200.000 kg

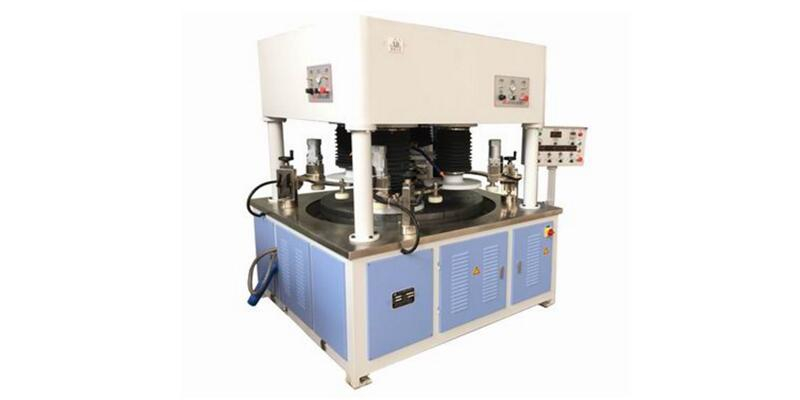

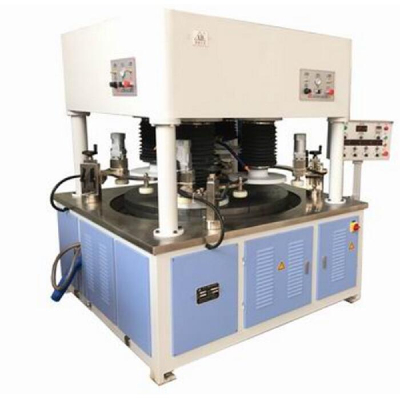

Mainly used for polishing spherical surface of silicon, lithium niobate crystals, optic glass, valve, mechanical seals and some other hard materials.
The machine adopts high-power worm gear reducer, larger thrust ball bearing, large output torque of variable frequency drive system, The machine has four working positions, The pressure is adjustable by regulation the pressure valve installed right below the polisher. The counting is automatically controlled, and the polisher will be off as the preset amount has been achieved.
This friendly design makes the machine not only easy to operate but also improve work efficiency.
- Size: 4.75
- Place of Origin: China
- Brand Name: XB
- Model Number: DMYP12B-4
- Weight: 1200.000 kg
| Main technical specification | ||||
| Plate dia. | Φ 1200 mm | Sphere range | ≥R700mm | |
| Processing range | Φ440 x 4 | Milestone dia. | 10 ~ 40RPM (can be set up separately according to customer's requirement) | |
| Max. pressure | 140kgf / pcx3 | Total power | 11.5KW / 380V | |
| Weight (Kg) | 4200 | Size (mm) | 1710 x 1710 x 2010 | |
| We also can design and manufacture the machine according to the customer's special requirements | ||||
